Fire Damper Rivet Table, Fire damper Riveting platform
 |  |

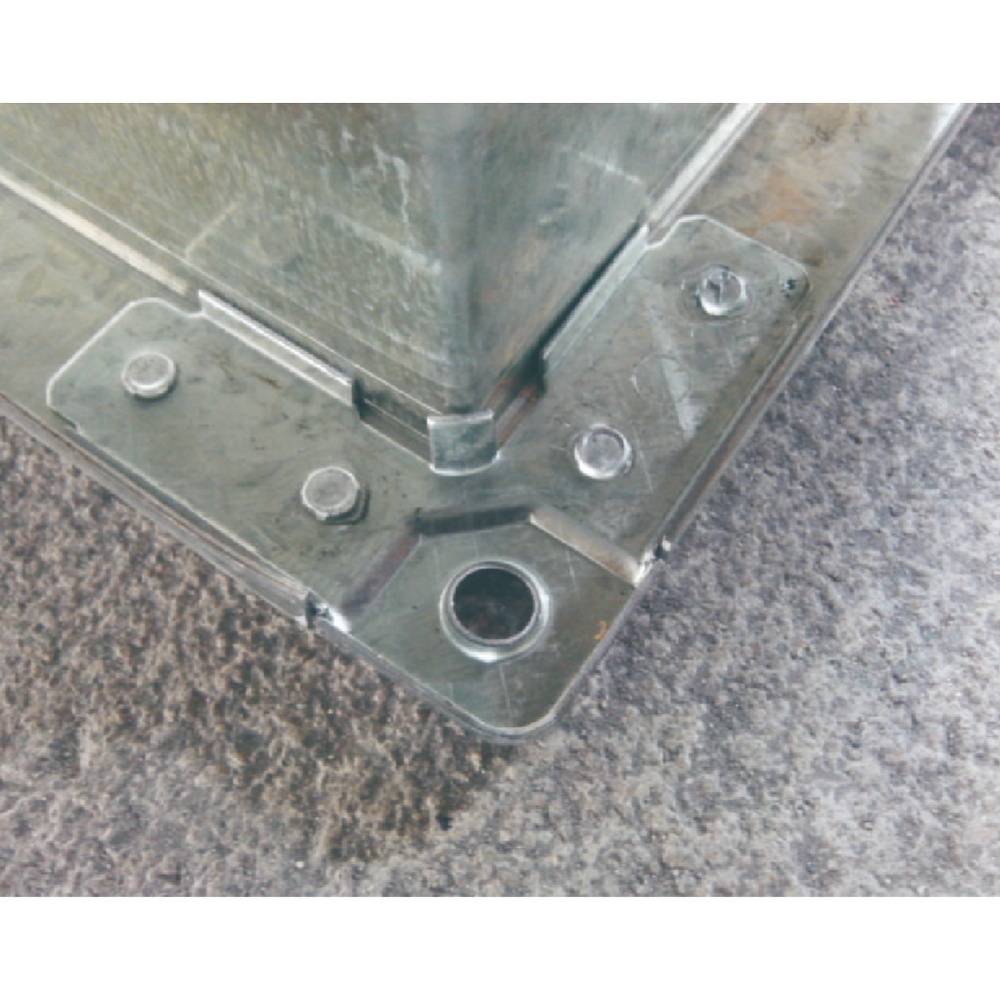

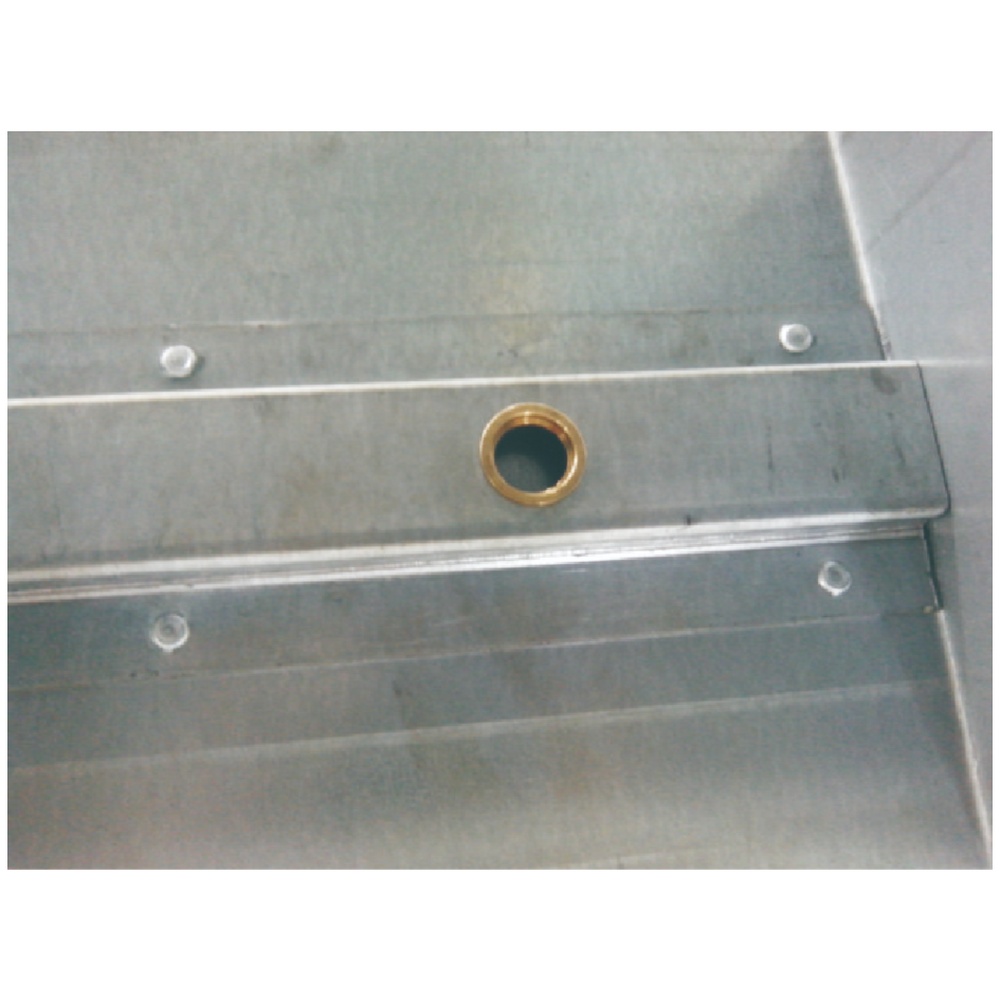

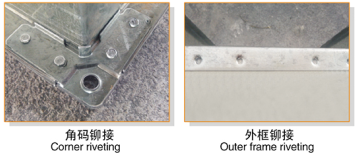

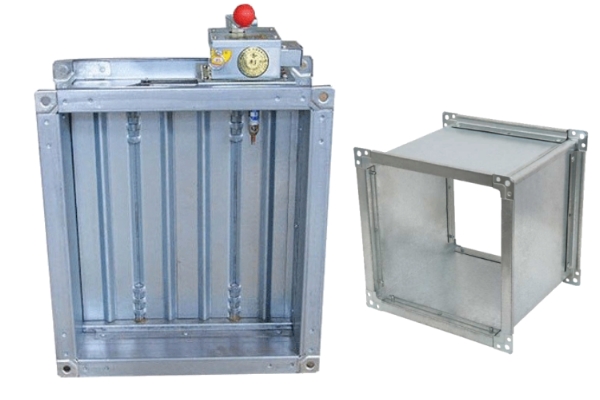

The damper fastening platform consists of frame riveting (four rivets), corner riveting (four rivets), supporting bar riveting (double rivets) and weather strip riveting (single rivet). Double rivets model and single rivet model can be configured according to customers’ requirements. There are two models can choose. One is rotating wall, the other is rotating bracket. The machine is very easy to operate.
 |  |
(I) Main Components
1. One set of platform for both corner bracing and Frame riveting (or if so required by the customer, one stand-alone platform for corner bracing, and one for Frame riveting).
2. One set of support bar riveting platform
3. One set of stand-alone suspension mechanism for weatherstrip riveting

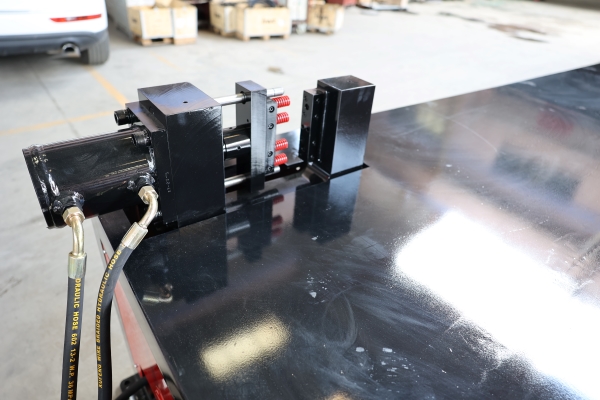

4. Four sets of hydraulic system
5. One computer desk
(II) Production Flow Processes
Fire damper Frame (positive pressure air supply outlet) riveting (at four points simultaneously) → Corner brace riveting (at four points simultaneously) → support bar riveting (at two points simultaneously) → Blade mounting → Weatherstrip riveting (at a single point) → Mechanism installing → Finished valve product
(III) Main Technical Parameters
Riveted valve thickness: 200-320mm
Riveted valve size: Min 180*180mm, or max 3000*3000mm
Riveting material required: 1.2-2.0mm galvanized sheet
Riveting efficiency: 4 sec/time, excluding clamping
Platform size: 3600*3600*850mm (L*W*H)
Electric control system: PLC treadle control
Power voltage: 380V/50Hz/3PH
Motor power: 4KW (corner brace riveting) + 4KW (support bar riveting) + 4KW (Frame riveting) + 3KW (weatherstrip riveting), 15KW in total

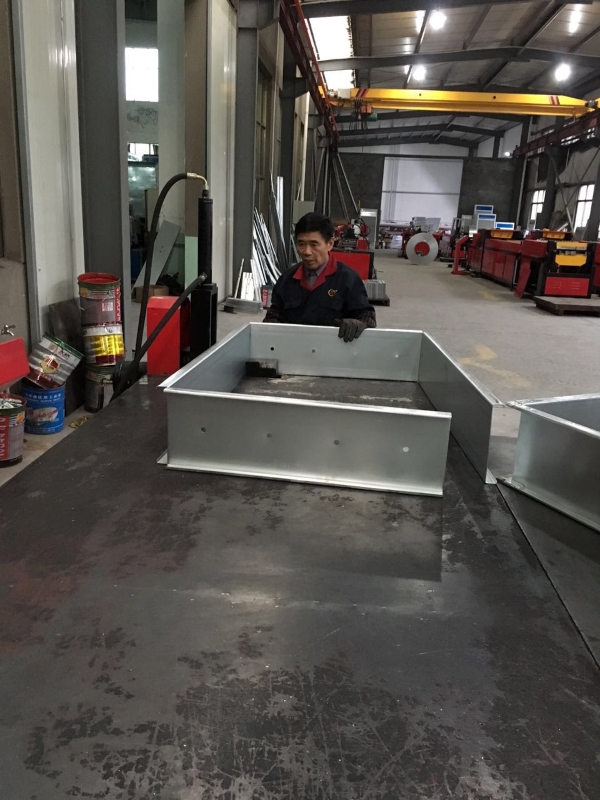

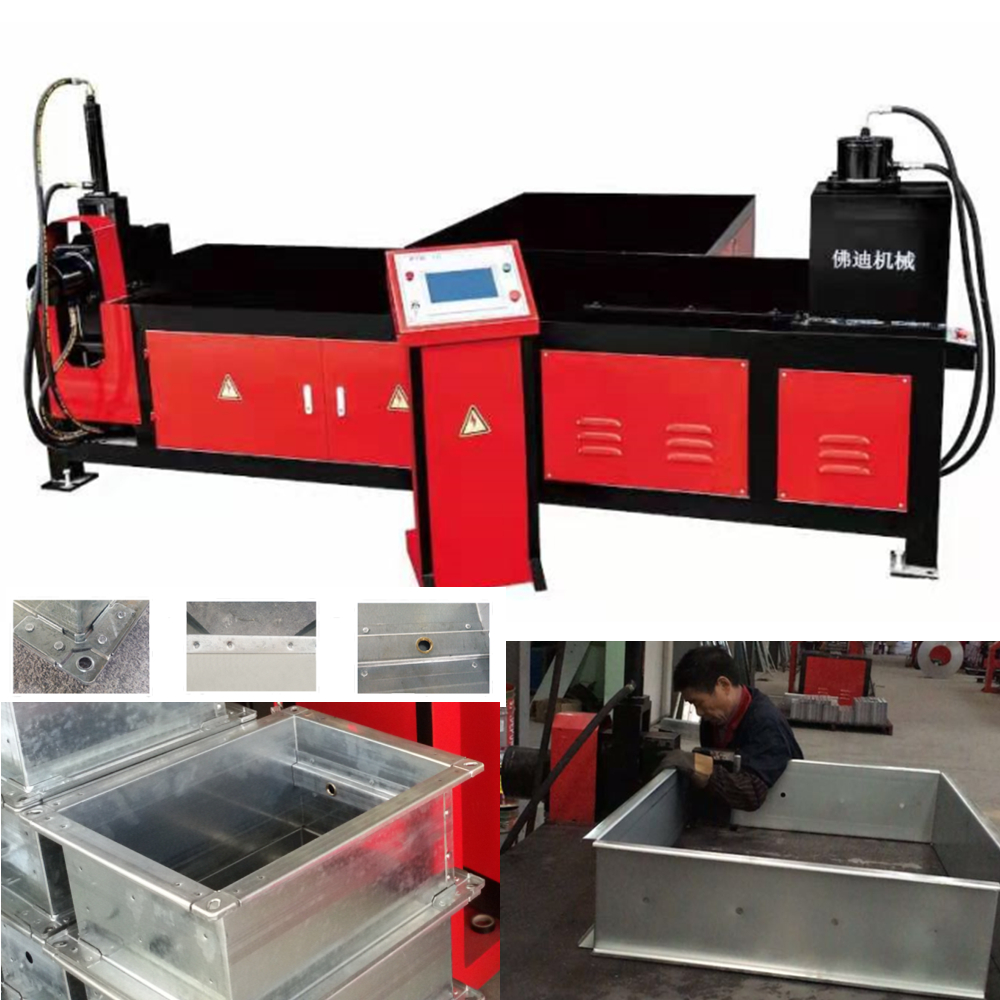

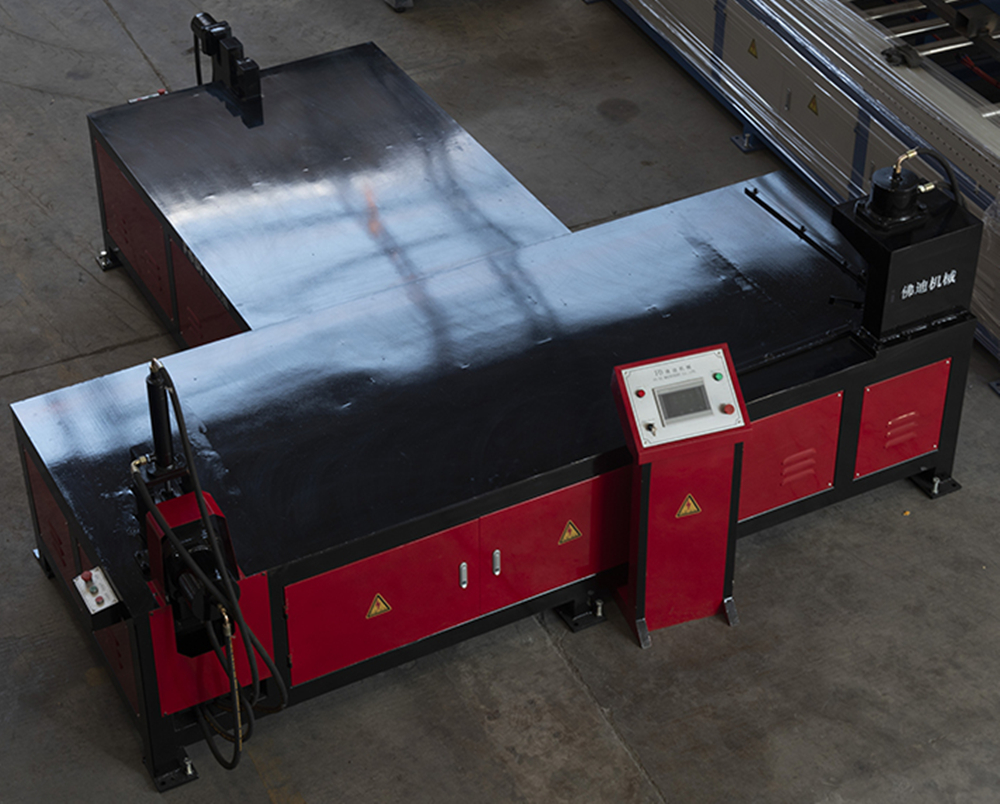

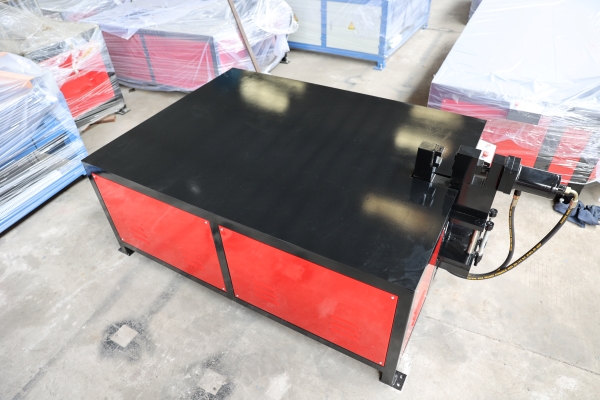

(IV) Actual Product Photo:
VIII. Related Complementary Molds
1. One set of fire damper common-plate corner brace mold (with one separate pair for decoiling and forming respectively)
2. One set of leaflets fitting mold (with one pair for decoiling, and two pairs for forming)
3. One set of baffler notching mold
4. One set of connecting rod punching mold
5. One set of blade cover plate mold (with one separate pair for decoiling and forming respectively)
