The fire damper series of equipment mainly consists of: (I) the Frame production line; (II) the blade forming machine; (III) the backstay forming machine; (IV) the leaf spring forming machine; (V) the positive pressure air supply outlet production line; (VI) the positive pressure air supply outlet baffler production line; (VII) the riveting platform; and (VIII) the related complementary molds.
|

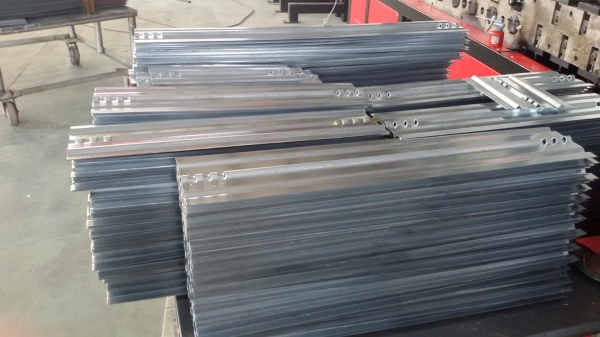

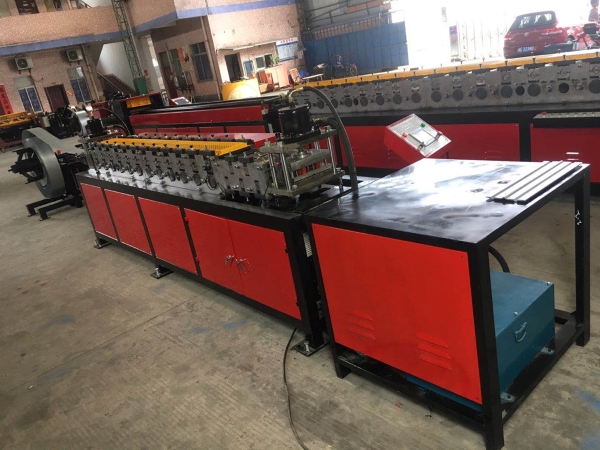

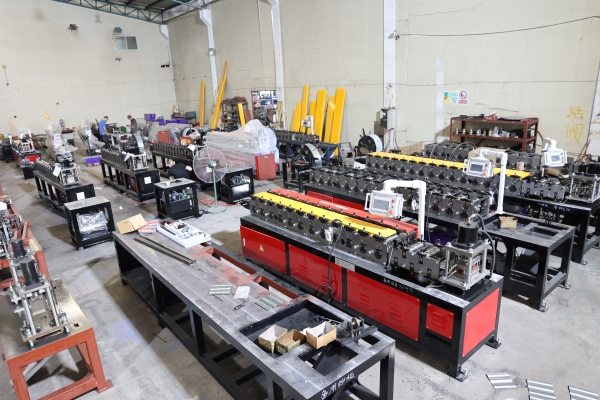

HVAC Damper Blade Roll Forming Machine, Fire damper blade

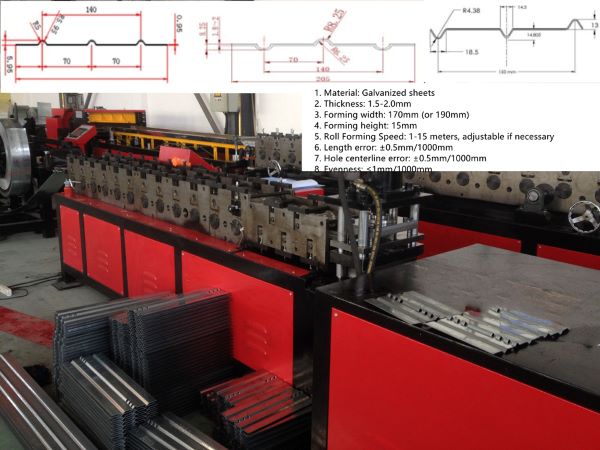

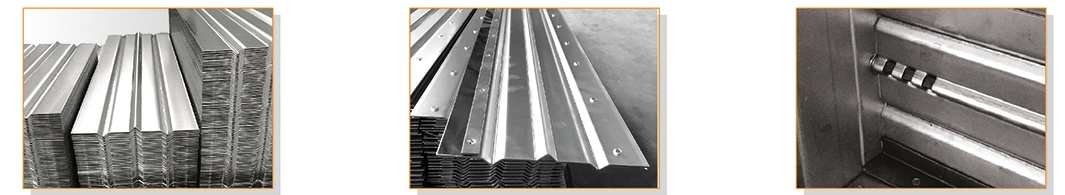

Reference shapes | ||
grooving on same direction | grooving on different direction | grooving on different direction |
|
|
|
(II) Production Flow Processes and Main Features

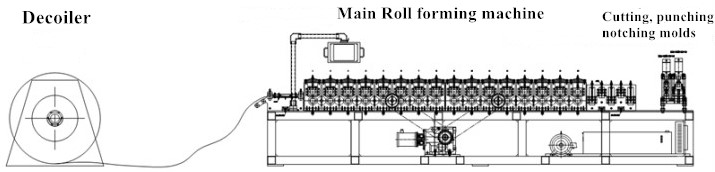

Decoiling → Cold roll forming → Straightening, shaping → Cutting to length, punching → Manual discharge
(III) Components List
1. Two non-powered manual internally-braced feed racks
2. One set of main forming machine

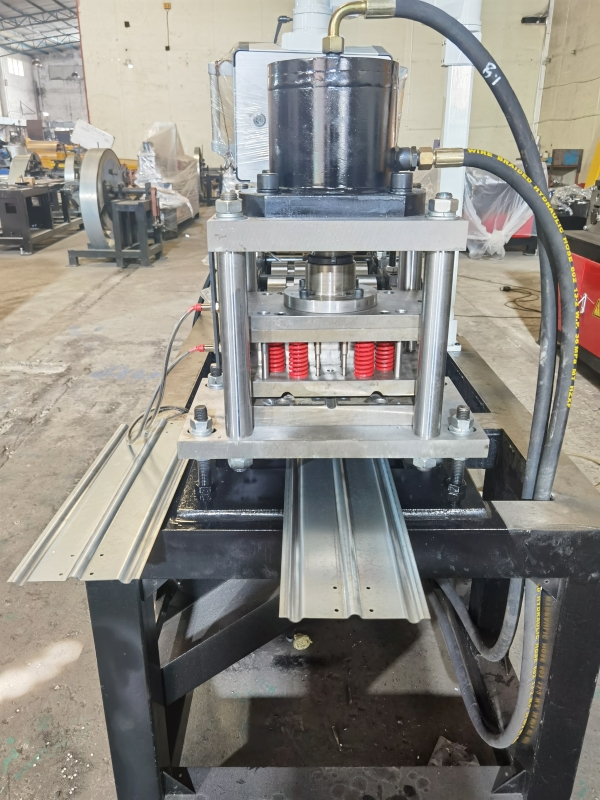

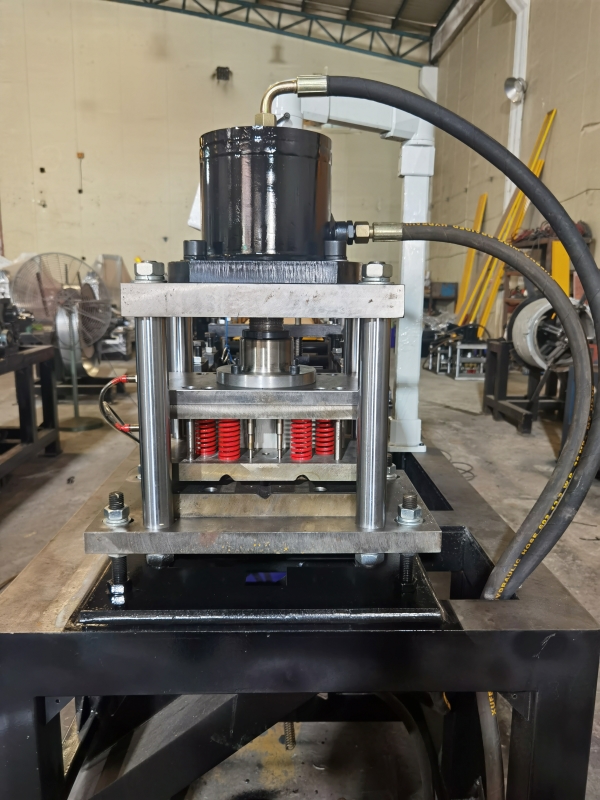

3. One set of cutting, punching and notching molds
4. One set of electric control system
5. One set of hydraulic control system
 |  |
 |  |
(IV) Main Technical Parameters
1. Material: Galvanized sheets
2. Thickness: 1.5-2.0mm
3. Coil width: 156/166/176/186/196/210mm
4. Coil weight: ≤2000kg
5. Blade size: 150/160/170/180/190/204mm
6. Center-to-center distance between left and right ribs: 102mm (for round ribs)
7. Max width of blade formed: ≤204mm
8. Blade cover plate hole notched or punched: As per the requirement of the customer
9. Motor power: 7.5KW/4KWw
10. Roll Forming Speed: 1-15 meters, adjustable if necessary
11. Blade length error: ±0.5mm/1000mm
12. Blade evenness: ≤1mm/1000mm
13. Control method: PLC
14. Main power supply: 380V 3HP 50HZ
15. Pressure output of hydraulic system: 25MPa, and the working pressure is 8-12MPa
16. Production line size: Approx. 6000mm×700mm×1200mm (L×W×H)

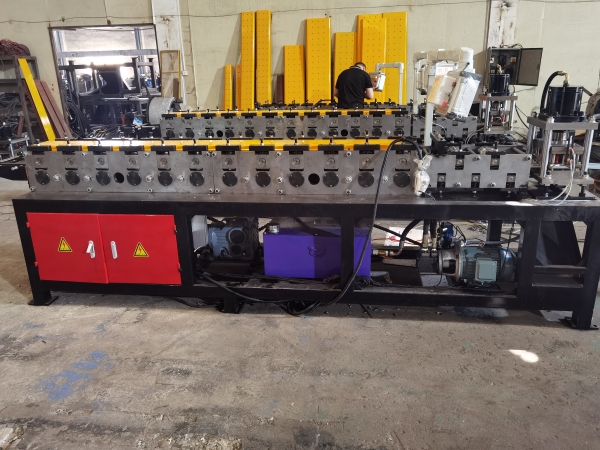

Damper blade forming machine makes manufacture of damper blade easier. With roller stations, it can process material of 1.5-2.0mm thickness. Combine with a decoiler and cutting unit, an auto line can be provided with PLC controlling. We can also manufacture the machine based on the blade profile as customer require. The machine is servo driven and full automatic operation. Circle or square bead are available. The blade can be made with slitting or without slitting. Blade length and number can be customized by set in the CNC controller.
 |  |
 |  |
Spring Leaf for Fire Damper |

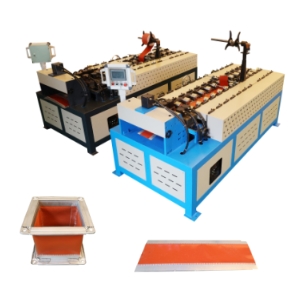

Flexible Air Duct Connector |
