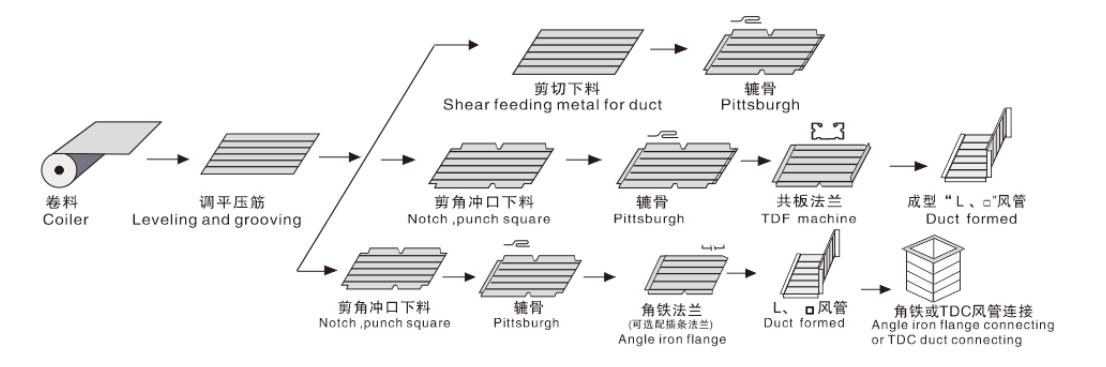

flange and the angle iron flange ,automatically forming and bent into ”L“, ”U“, ”口“ shaped duct. Equipped with punching support air, TDF flange hole is optional. Pittsburgh is formed before bending the short side of the large size duct. It has the advantages of high automation, high efficiency, labor saving and material saving.
|

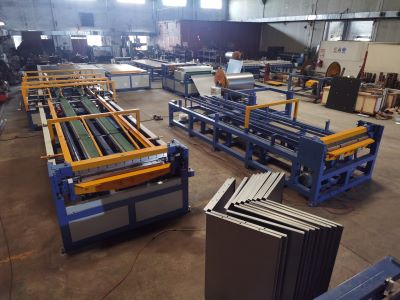

Air Duct Automatic Production Line VIII
3 different kinds of Flange forming functions are available(TDF/TDC/CS Insert Flange)

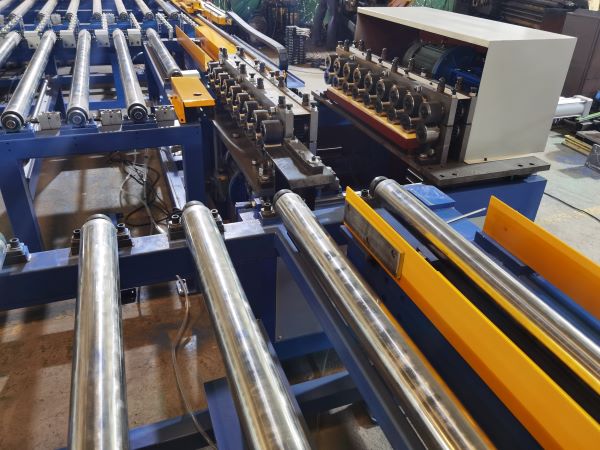

No need to change the roller gaps to meet the thickness of the material because we are using the dual lock forming machines.

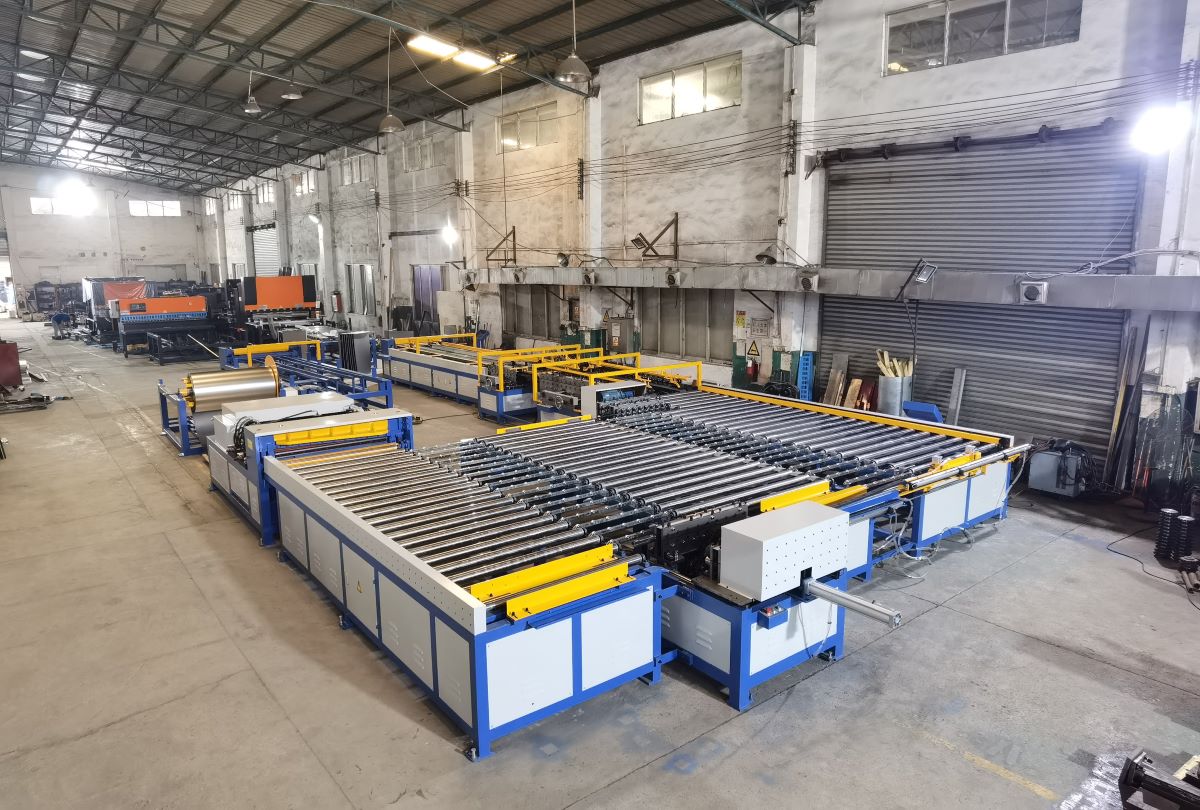

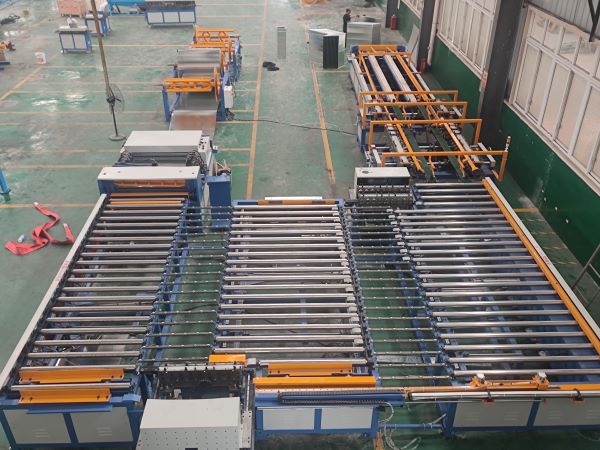

Air Duct Automatic line VIII is u shaped distribution, small area, convenient installation, suitable for limited site manufacturers to use, fast, high efficiency.Average daily production duct is more than 2000 square meters. The production line has the automatic material-saving pattern, the processing plate has no scrap.

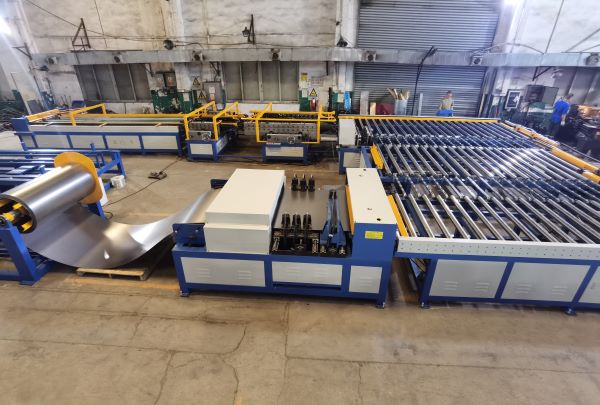

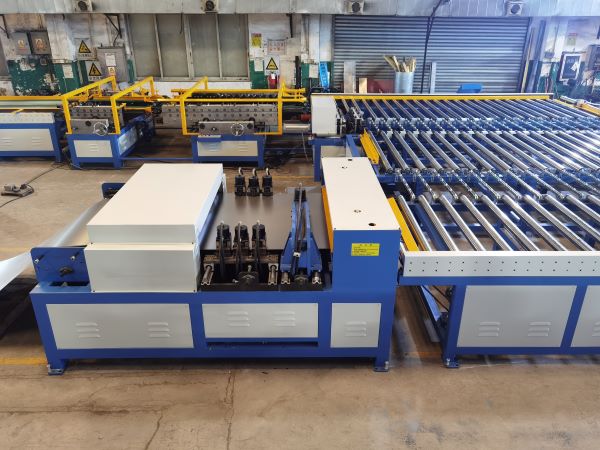

The Automatic CNC Duct Production Line VIII is our latest Duct coil line machine. With U-type structure, it reduces time of plate passing time which achieves the productivity of 18-25 seconds per piece. Pittsburgh Seam and Single Seam forming separately by Two Sets of Lock Forming Machine which makes the Pittsburgh Seam is processing in the front. When producing large-size duct, the short side bent first, which is more suitable for the Duct Seam Closing and Heavy Gauge Material.
Features:
★ During feeding mechanism with Hydraulic servo system, manipulator helps to ensure stability and speed of the machine, and the accuracy of its locating system.
★ It only takes 18-25 seconds to make one L-shaped workpiece and the efficiency will double compared with the linear type.
★ Daily processing capacity can reach 800-2500 suqare meters.
★ All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
★ Under the material-saving mode of CNC system, waste is less than 20 mm per roll.
★ With production memory functions, the production orders can be tracked and checked.
★ The short side is formed first, which is more suitable for Duct Seam Closing and Heavy Gauge Material.

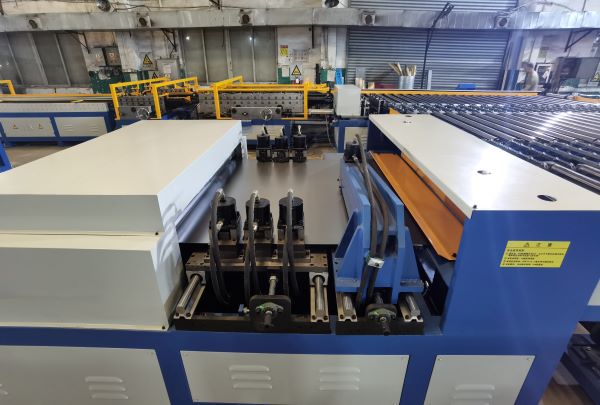

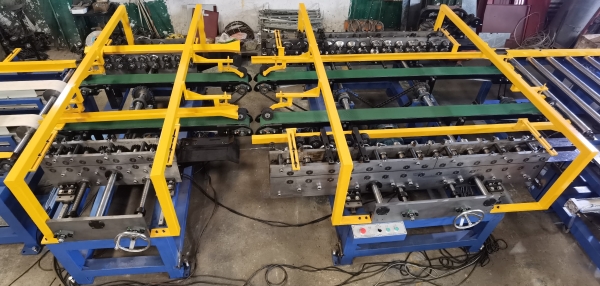

dual lock forming according to the material thickness to change |
3 kinds of flange making available |
|  |
|
|
