Air duct automatic production line III with slip drive function

Air duct automatic production line III with slip drive function,Slip & Drive Air Duct— The most common transverse (end to end) connection for commercial HVAC Duct. The Drive Cleat is secured to the 360 degree flanged section on left (formed by a Cleatbender or Drive Turn machine). The Flat S Lock is hammered onto the section on right. For most low and medium pressure jobs, Duct Slip and Drive connections meet SMACNA standards

Contact: * Company: MSN/skype: Subject: Tel: Fax: E-mail: * Website: Content: * Code: *(marked *should be filled)

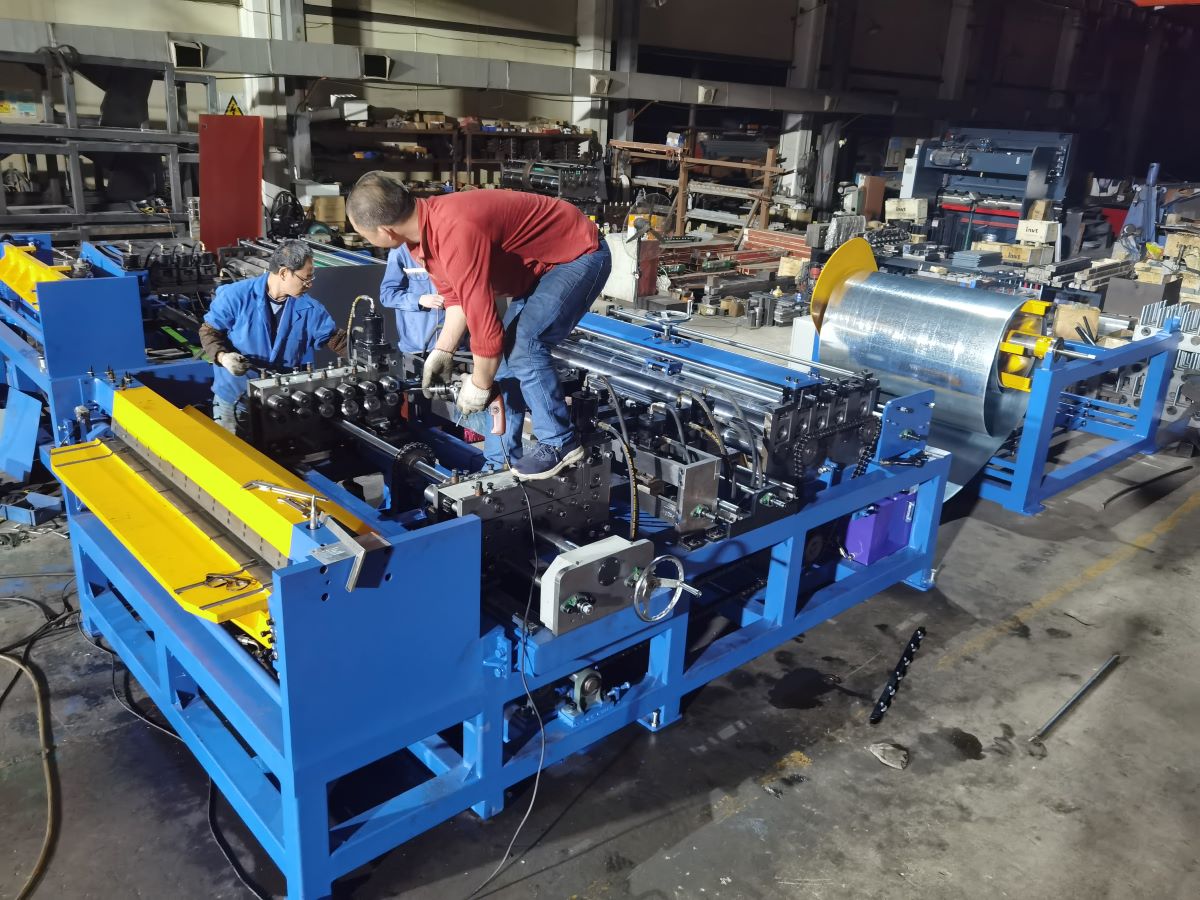

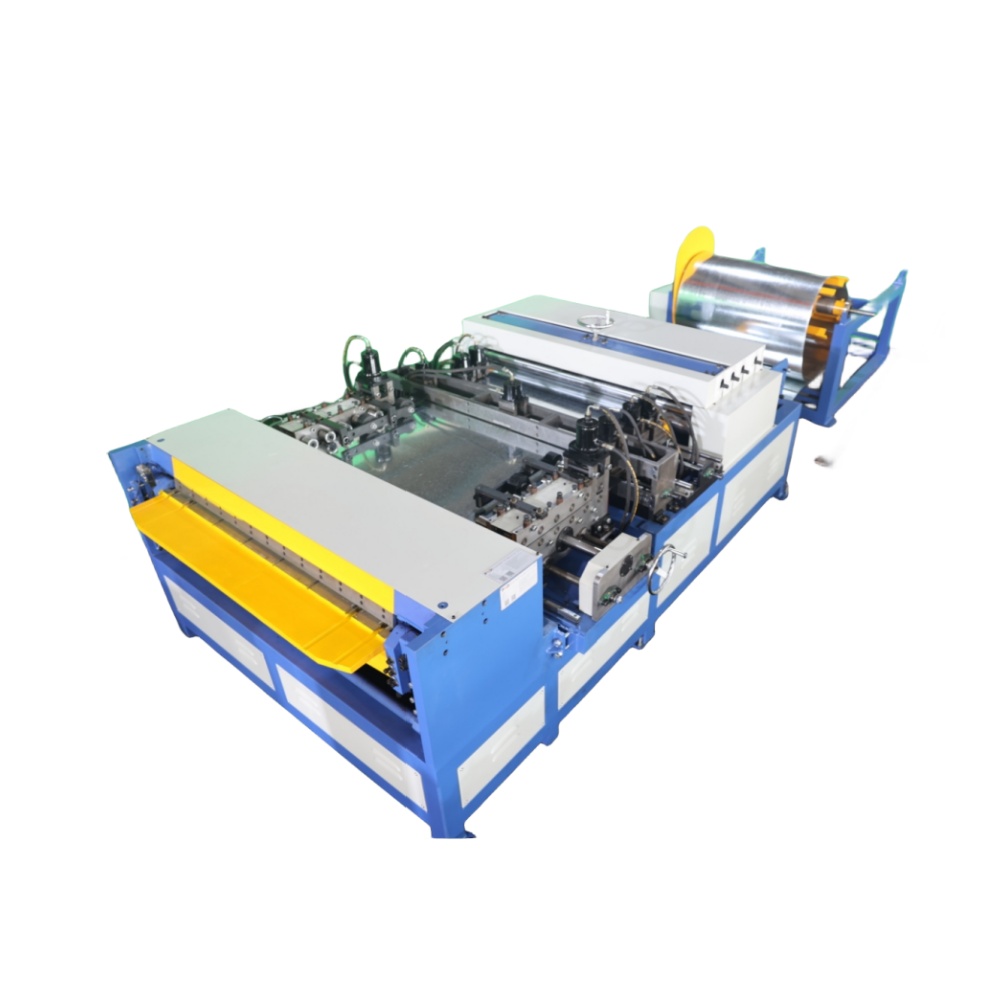

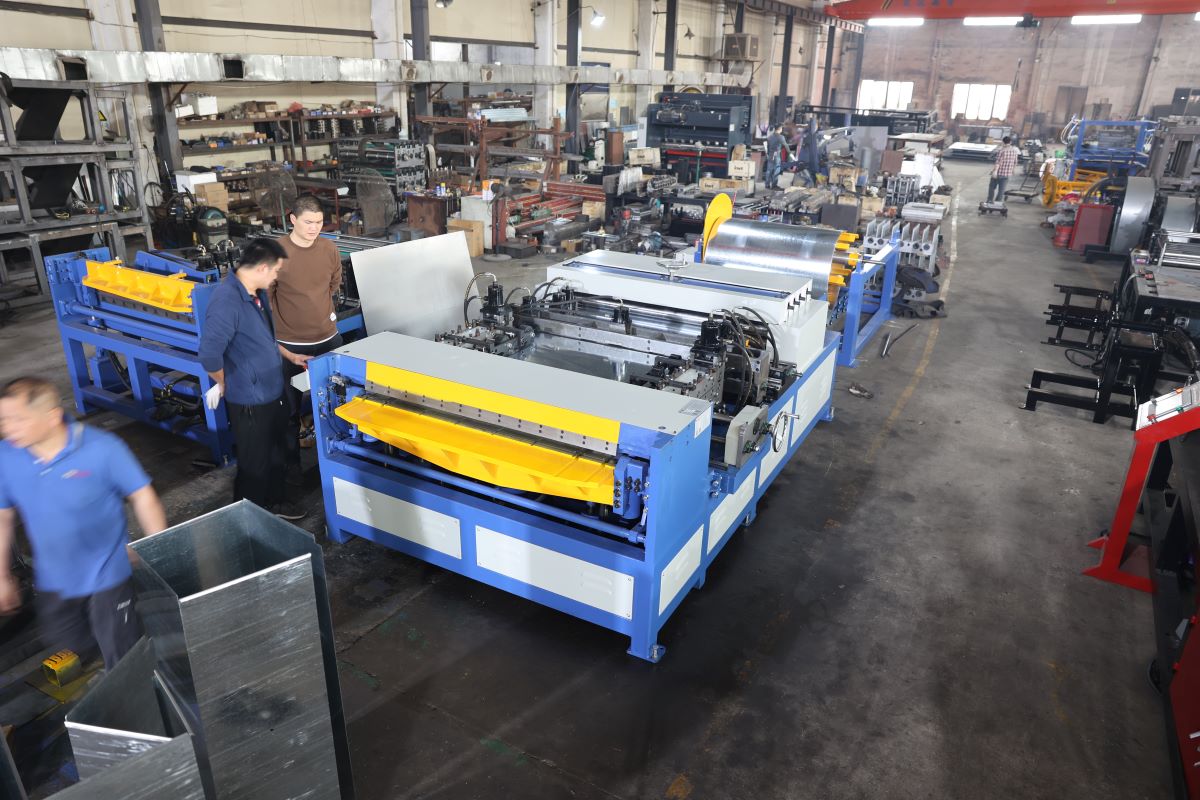

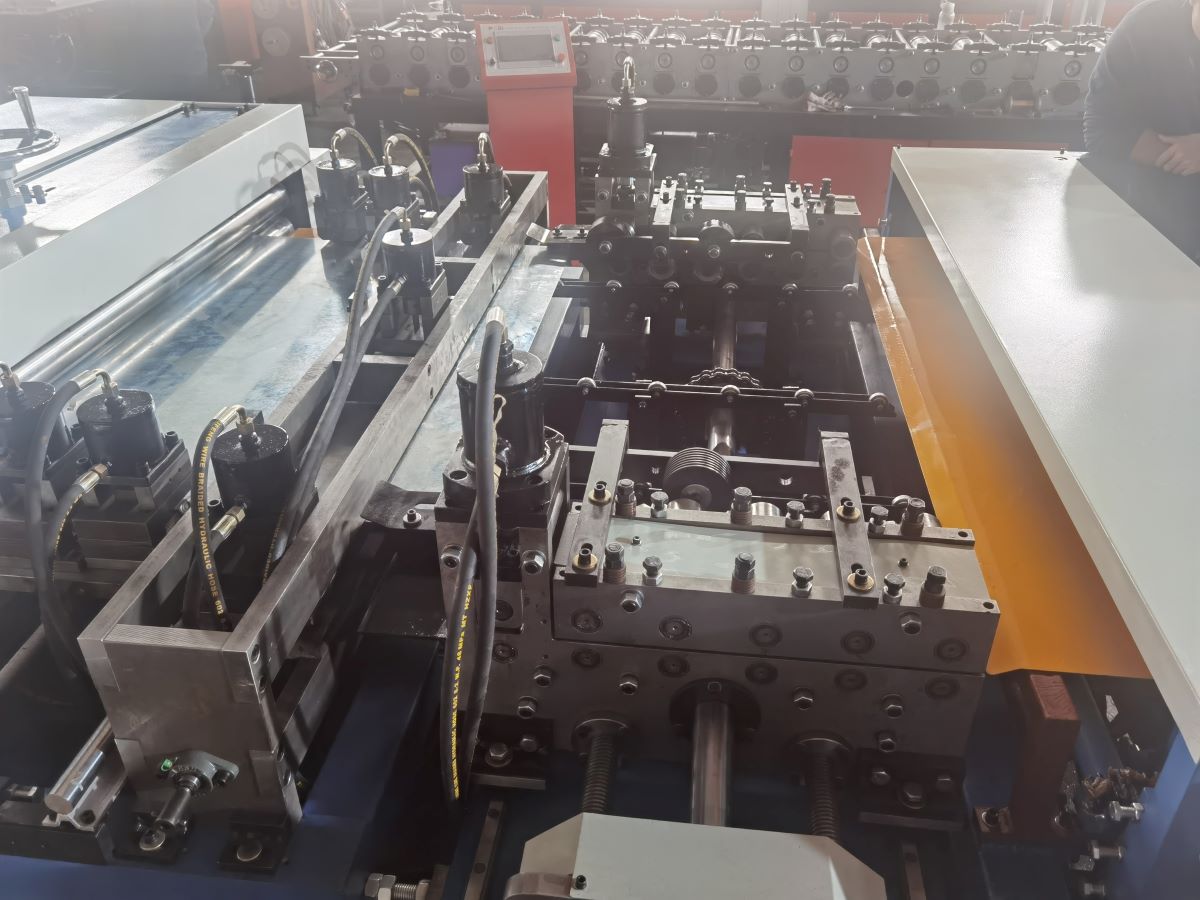

Air duct line III Automatic Production Line

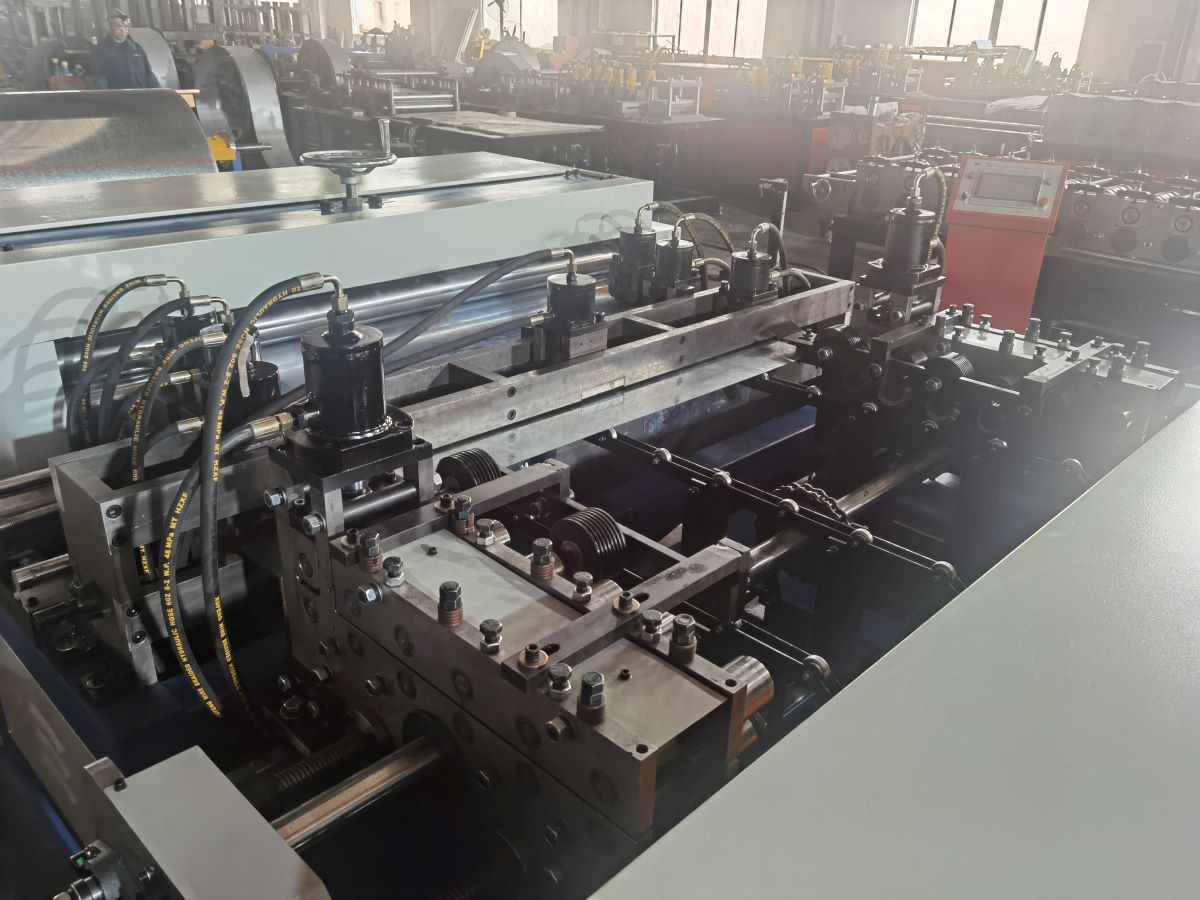

Incldes leveling and beading unit,notching unit,hydraulic shearing and plate bending unit.maximum feeding speed is 16m/min by length tolerance is ±0.5mm and the diagonal tolerance is ±0.8mm.

1.Dual-coils decoiler

2.CNC contral

3.(Optional)Tie rod holes(For duct bracing)punching divice;

4.(Optional)TDF Flange holes punching device.

Solution:  Except duct forming line III, following machines are required:

TDF

1.Pittsburgh lock former

2.TDF roll-former

3.Hyraulic seam closer

4.Auto corner production line

5.Hyraulic corner insertion machine

TDC

1.Pittsburgh lock former

2.TDC roll-former

3.Seam closer

4.riveting machine

Flexible Air Duct Connector

Air Duct Flange Corner Installation Machine

Air Duct Seam Locker Machine

Angle Steel Punching Machine

Fodi Machinery Co.Ltd  Development History

★ Profound experience in HVAC Ducting Machinery (Since 1988).

★ Profound experience in Automatic Spiral Duct Forming (Since 2004).

★ Profound experience in Automatic Duct Production Line (Since 2006).

★ Have the largest inventory for HVAC Duct Making machines in the industry.

★Got Pantened for Fire Damper Series

★ The real manufacturer with the most complete varieties of HVAC Ducting Machinery in China.

★★★Fodi company can give you both CNC duct production line machine which can manufacture air duct automatically. We will suggest a whole machines series in accordance with different customers needs★★★
